Remodel Plans: Your Scope, Drawn

PLANNING SERIES | ARTICLE 4 DEEP DIVE: PLANS

Why drawings matter, who prepares them, and what a useful planning package may contain.

Remodel plans help turn a broad idea such as “remodel kitchen” into information other people can understand and price. Look at a few contractor proposals and you may still find scopes that short. That phrase means something different to every person who reads it.

Remodel plans turn part of the scope into visual information. They show where work belongs, how dimensions relate, and how new construction meets what remains. They help the homeowner, designer, engineer, contractor, subcontractors, and inspector work from the same understanding.

Plans are powerful, but they are not the entire planning package. The complete project may also rely on a written scope, specifications, selections, schedules, pricing documents, clarifications, and approved changes. Together, those documents describe the project people are agreeing to design, price, and build.

How remodel plans become contract documents

Picture a proposal that calls for white oak cabinets from a named manufacturer, Taj Mahal quartzite countertops with waterfall edges, and a matching backsplash wrapping the kitchen window. It sounds detailed. Then the project reaches cabinet hardware, and no document says whether pulls are included, who selects them, who purchases them, or who installs them.

The homeowner may assume hardware is included because every kitchen needs it and the inspiration photos show it. The contractor may have priced exactly what the drawings, specifications, and proposal identified. By the time the omission appears, the budget may not contain the material or labor.

The contractor is responsible for the project described in the contract documents, not the version that exists only in someone’s mind. Those documents may include several connected pieces:

Clear documents protect the contractor too. Good contractors often solve minor problems without documenting every favor. Eventually, another unlisted request may exceed what the project can carry. When the scope is clear, both parties can recognize when a request falls outside the agreement and address it openly.

Who prepares the drawings?

Simple planning sketches can come from many sources, including the homeowner. I have built from clear, dimensioned sketches when the work was straightforward and the information matched the project.

Depending on the scope, drawings may be prepared by a designer, draftsperson, architect, engineer, contractor, online planning service, homeowner, or a coordinated team. The right question is not simply who can draw. It is whether that person is qualified and legally permitted to prepare the documents this particular project requires.

A draftsperson or residential designer may efficiently document a layout that has already been developed and may also contribute design thinking within the services they offer. An architect can analyze and design complex relationships involving space, form, exterior appearance, additions, roofs, circulation, and other building decisions. An engineer addresses structural analysis and structural details when that expertise is required.

California allows certain residential and nonstructural work to be designed without an architect, but work affecting structural or seismic safety may require a licensed architect or engineer. The building official determines what it will accept for the proposed work. Homeowners can review the California Architects Board Consumer’s Guide and confirm requirements with their local building department before hiring someone to prepare permit documents.

The level of professional involvement should match the level of change. If the project’s shape is settled, documenting it may be the primary task. If the shape itself is still the question, design must happen before documentation can be complete.

Call out what you already know

If you know you want a specific faucet, cabinet line, flooring product, or appliance, record it early. A confirmed selection can replace an allowance, which is a placeholder amount used when the actual product and price remain unknown.

Real selections reduce the number of assumptions and make bids more comparable. If you have not made a decision yet, that is not a failure. It is an open item that should be identified, assigned to someone, and resolved at the right point. The next deep dive will examine how designers help homeowners make those decisions.

Plans and specifications work together

Drawings do not need to repeat every standard code provision. They do need to show the decisions that affect design, construction, coordination, or price.

Critical information begins with dimensions that close. If a wall is shown as twenty feet overall, the dimensions along it must reconcile with that total. When they do not, someone standing in the room eventually decides which number to follow, and the homeowner may not be present when that decision is made.

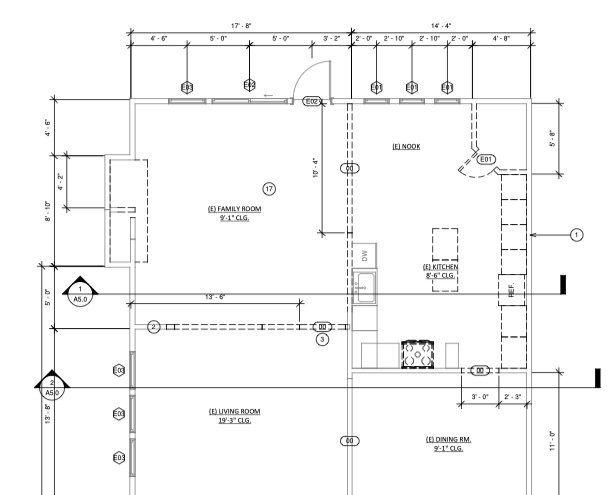

The documents should identify what is removed, what remains, what is added, where fixtures and equipment belong, where affected plumbing and electrical work land, and what changes structurally. They should also define the edges of the work: where flooring stops, where tile ends, how a new surface meets an existing one, and which adjacent areas require patching or refinishing.

Outlet, switch, lighting, fixture, and clearance information should be shown when it affects layout, use, coordination, or price, even when code also establishes minimum requirements. Missing information becomes an assumption, and contractors frequently price uncertainty as risk.

Everyone must price the same version

Plan sets change. A sheet may be revised after building-department comments, a layout may shift, or a window may move. Every sheet should display an issue date, and revised sheets should be identified consistently. Every active bidder should receive the same revision and the same written clarifications.

If one contractor prices the February drawings and another prices the April revision, the proposals are no longer comparable. That difference often remains hidden until construction begins.

What a complete remodel plan set might contain

A complex remodel or addition may use most of the following. A simpler project may require only a small portion. The project and the reviewing jurisdiction determine the actual package.

Some information may appear on drawings, in schedules, in specifications, or in separate consultant documents. Homeowners association approval is a separate private process, although it may affect the exterior design and schedule. Soils reports, surveys, energy documentation, and other supporting information may be required depending on the site and project.

When licensed design professionals are required, each professional signs or stamps the work for which they are responsible. Not every residential project requires both architectural and structural stamps. The building department determines what documentation and professional involvement it requires for review.

The right amount of detail in remodel plans

The right amount of drawing is enough for a qualified person who did not attend every planning conversation to understand what should be built. The scope is captured, dimensions reconcile, edges are defined, and critical details are identified.

That does not mean paying someone to restate every standard requirement. It means documenting the choices, relationships, and boundaries that distinguish your project from any other remodel.

The complexity of the work determines the level of documentation. The budget alone does not. Done well, the planning package replaces “remodel kitchen” with a project that the homeowner and every bidder can see, question, and compare.

Return to the overview: Remodel Plans, Design, Engineering, and Permits
